Product Detail

51.2V STACKED LITHIUM ENERGY STORAGE BATTERY

Advantages

Built-in LiFePO4 Battery cells. Large capacity, long cycle life, high safety, environmental protection

Intelligent communication

Built-in BMS control board

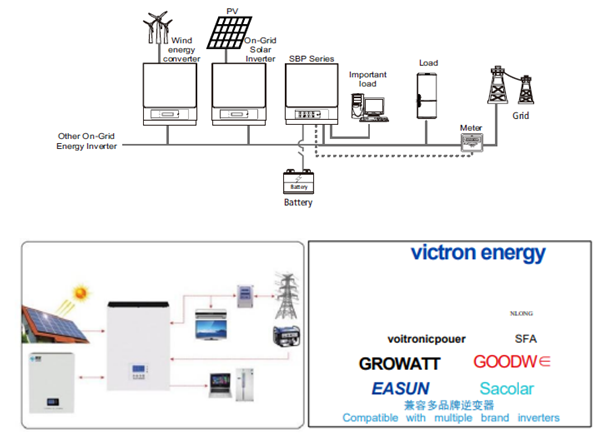

Compatible with multiple brand inverters

400Ah/800Ah/1200Ah Capacity is avaiable

51.2V 5KWH 10KWH 15KWH 20KWH Solar Battery Stacked LifePO4 Lithium Ion Energy Storage Battery For Home Energy System

Model Number S-512400

DETAILS

*可根据客户需求提供电压、容量、外形尺寸/颜色定制，以及OEM/ODM服务
Can provide voltage, capacity, shape size/color customization, and OEM/ODM services according to customer needs.


AVAILABLE SIZES

产品型号 Product Model	S-512400
标称电压	51.2V
Nominal voltage

标称容量	400Ah/20480Wh
Nominal capacity


电芯类型	磷酸铁锂(LiFePO)
Cell type


组合方式	16S2P
Composition
充电截止电压	58.4v
Charging cutoff voltage


放电截止电压	40V
Discharge Cut-off Voltage

最大持续放电电流	200A
Maximum continuous discharge current

瞬间放电电流	400A
Instantaneous discharge current
显示屏	LCD
Display

标准充电电流	<100A
Standard charging current

标准放电电流	200A
Standard discharge current

充电适合温度	0℃~45℃
Charge temperature
放电适合温度	-20 ℃~65℃
Discharge suitable temperature

甲池组尺寸	585550840mm
Battery pack size

包装尺寸	6806501050mm
Package size

电池组净重 Net weight of battery pack	200Kg
电池组毛重	Net weight of battery pack
Gross weight of battery pack


通讯接口	CAN/RS232/RS485
Communication interface


冷却方式	自然冷却
Cooling method	Natural cooling

运输分类	UN38.3/MSDS/海运/空运
Transport classification	UN38.3/MSDS/Sea/Air
电池保护功能	过流、过压、过充、过放、短路等
Battery protection function	Overcurrent,overvoltage,overcharging,overdischarge,shortcircuit,etc
