Electric Car Intelligent AC Share Charging Pile Wall Box with Build in payment system

OEM ODM Intelligent Outdoor EV car


AC share charging station


Fire protection Fireproof function(certificated)

Model Number EVV01
DETAILS

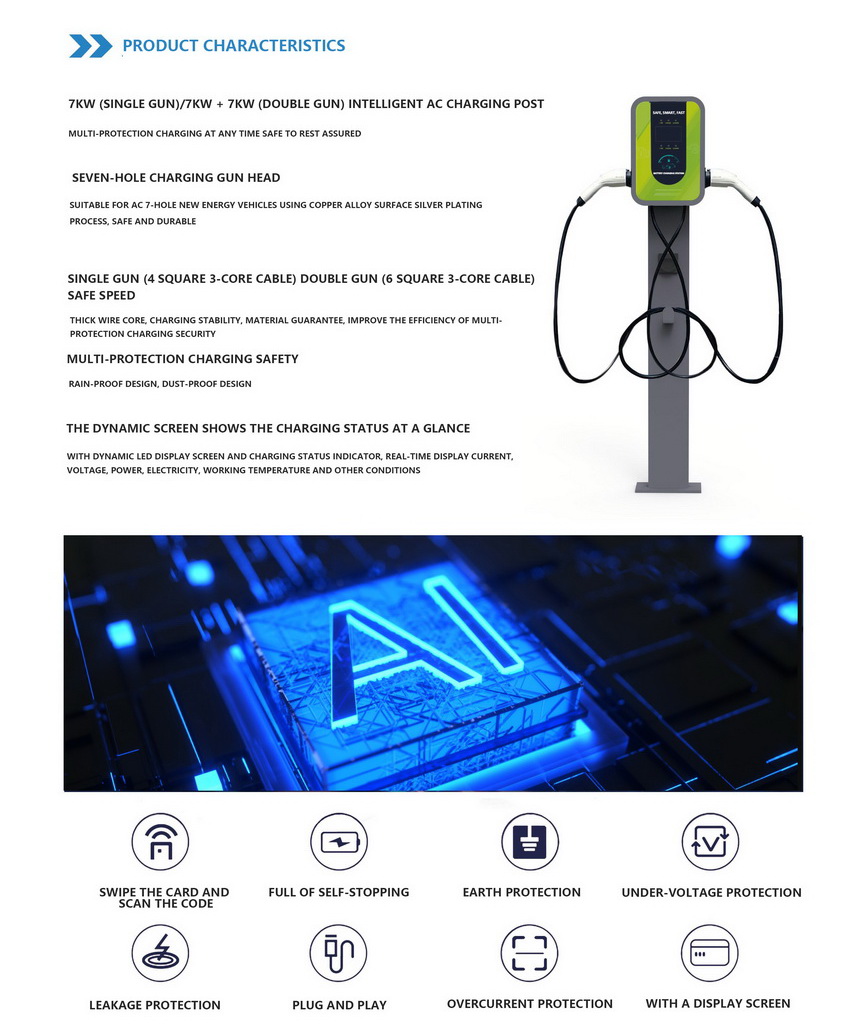

l  7KW (Single Gun) / 7KW+7KW (Double Gun) Intelligent AC Share Charging Pile

l  Multi-protection Charging at Any time, Safe, professional solution

l  7 Holes charge gun head

l  Suitable for A 7 Home new energy vehicles using copper alloy surface liver plating process, safe and durable

l  Single gun (4 square 3 core cable); double gun (6sqaure 3 core cable)

l  Thick ware code, charging stability, material guarantee, improve the efficiency of multi-protection charging security

l  Multi-Protection charging safety

l  Rain-proof design, dust proof design

l  The Dynamic screen shows the charging status at a glance

l  With dynamic Led display screen and charging status indicator, real time display current, voltage, power, electricity, working temperature and other conditions

l  LOCAL OEM software is welcome.

l  Online management systemApp developing , Localized online payment system (optional)

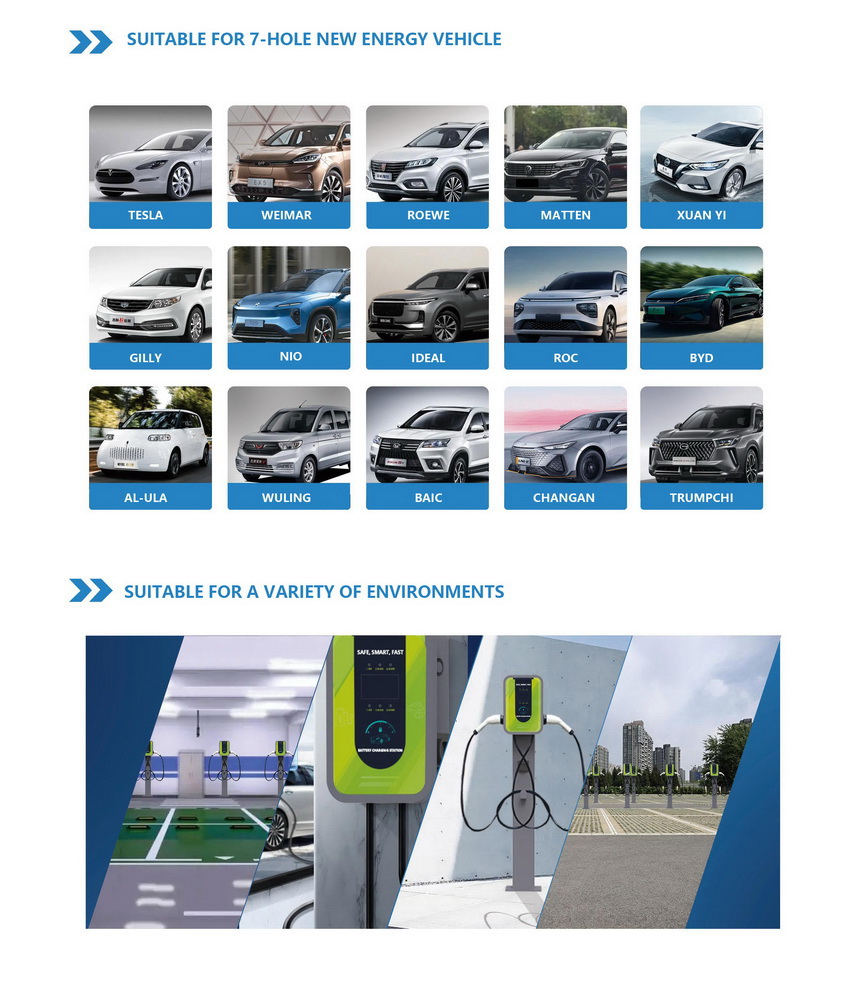

l  Application occasions: All car parks, like in Public occasions, such as Bus/train station, Airport, Shopping mall, Squares, Community, School, apartment, Commercial building, hospital clinc and so on.

l  Application commodity: batter size less than 35cm x30cm x25cm

l IP54





AVAILABLE SIZES

Model No.

EVV01

Payment

Time charge

Package charge

QR code payment

Tap card charge

Online membership card, pre-pay system, Support   e-wallet, like Stripe In Europe, Grab pay, Touch & Go in Southeast Asia;   end user software can be iOS APP and Android APK

Or Touch screen plus the bank card reader.

Online system

Yes,

Oversea   cloud server, USA, Singapore, Dubai, Germany
  Support by the AI data analysis system integrates modern technologies of big   data and deep learning, provides in-depth mining and analysis of operation   and maintenance data, provides in-depth mining and analysis of operation and   maintenance data, effectively, improves operation and maintenance efficiency,
  optimizes operation and maintenance regulations, and achieves efficient, operation   and maintenance Reduce staff and increase efficiency to provide data support

Standard

IEC Standard

Certificate

CE, ROHS, REACH

Input

220V ±10% (or ODM solution)

Output Port

Tesla, 7 Hole, all types of EV Car

Output   Power

AC 7KW

Stand by power consumption

<2W

Rated Voltage

Single phase 220V

Or 110V, 230V, 240V, 380V(optional)

Rated Current

64A

Rated Frequency

50Hz/ 60Hz

Network hardware

LTE Category 4(4G optional)/SIM card module

Over Voltage Protection

Yes

Under   Voltage Protection

Yes

Surge   Protection

Yes

Over Load   Protection

Yes

Short   Circuit Protection

Yes

Earth   Leakage Protection

Yes

Over-temp   Protection



Yes

Surge   Protection

Yes

Waterproof

IP54

Storage   Temperature

-40 to 75 -40 to 167) ambient

Operating   Temperature

-30 to 55 -22 to 131) ambient

Operating   Humidity

Up to 95% non-condensing

Altitude

≤2000m

Display

4.5inch screen

Package

Paper carton

Machine size

Wall box size350mm(H)×400mm(W)×160 mm(D) X1

Stand size: 1050mm(H)×200mm(W)×160 mm(D) X1

Cable: 5 meter cable x 2

Weight:

G.W: 40KG   N.W 35KG
