Product Detail

51.2V WALL MOUNTED LITHIUM ENERGY STORAGE BATTERY

Advantages

Built-in LiFePO4 Battery cells. Large capacity, long cycle life, high safety, environmental protection

Intelligent communication

Built-in BMS control board

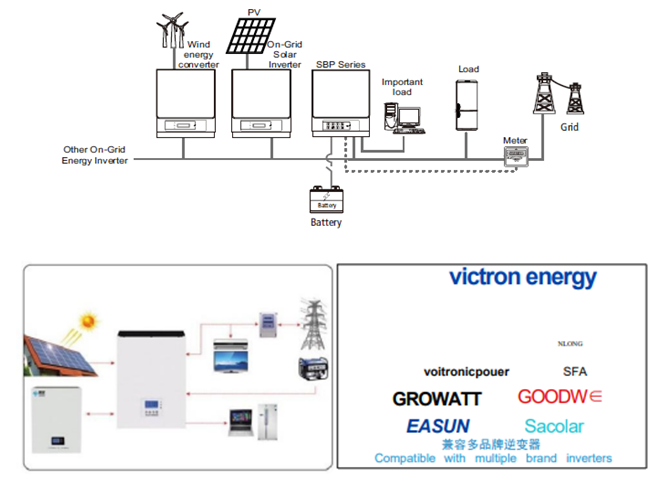

Compatible with multiple brand inverters

100Ah/200Ah/400Ah Capacity is avaiable

51.2V 5KWH 10KWH 15KWH 20KWH Solar Battery Wall Mounted LifePO4 Lithium Ion Energy Storage Battery For Home Energy System

Model Number WM-512200

DETAILS

*可根据客户需求提供电压、容量、外形尺寸/颜色定制，以及OEM/ODM服务

Can provide voltage, capacity, shape size/color customization, and OEM/ODM services according to customer needs.


AVAILABLE SIZES

产品型号 Product Model	WM-512100	WM-512200	WM-512230
标称电压	51.2V
Nominal voltage

标称容量	100Ah/5120Wh	200Ah/10240Wh	230Ah/11776Wh
Nominal capacity

电芯类型	磷酸铁锂(LiFePO4)
Cell type
组合方式	16S1P	16S1P	16S1P
Composition
充电截止电压	58.4V
Charging cutoff voltage

放电截止电压	40V
Discharge Cut-off Voltage


最大持续放电电流	100A	200A	200A
Maximum continuous discharge current


瞬间放电电流	200A	400A	400A
Instantaneous discharge current

显示屏	LCD显示屏/触摸显示屏
Display	LCD display screen/touch screen display screen

标准充电电流	<50A	<100A	<100A
Standard charging current

标准放电电流	100A	200A	200A
Standard discharge current

充电适合温度	0℃~45℃
Charge suitable temperature

放电适合温度	-20℃~65℃
Discharge suitable temperature

电池组尺寸	635455155mm	825485203mm	655475246mm
Battery pack size


包装尺寸	740540630mm	900560430mm	900560430mm
Package size


电池组净重	45Kg	75.5Kg	84.5Kg
Net weight of battery pack

电池组毛重	47Kg	85Kg	95Kg
Gross weight of battery pack


通讯接口	CAN/RS232/RS485
Communication interface


冷却方式	自然冷却
Cooling method	Natural cooling

运输分类	UN38.3/MSDS/海运/空运
Transport classification	UN38.3/MSDS/Sea/Air


电池保护功能	过流、过压、过充、过放、短路等

Battery protection function	Overcurrent,overvoltage,overcharging,overdischarge,shortcircuit,etc
